Enabling the era of next generation SDN

Stratum is an open source silicon-independent switch operating system for software defined networks. It is building an open, minimal production-ready distribution for white box switches. Stratum exposes a set of next-generation SDN interfaces including P4Runtime and OpenConfig, enabling interchangeability of forwarding devices and programmability of forwarding behaviors.

Stratum avoids the vendor lock-in of today’s data planes (i.e. proprietary silicon interfaces and closed software APIs) and enables easy integration of devices into operator networks. It delivers a complete white box switch solution to realize the ‘software defined’ promise of SDN.

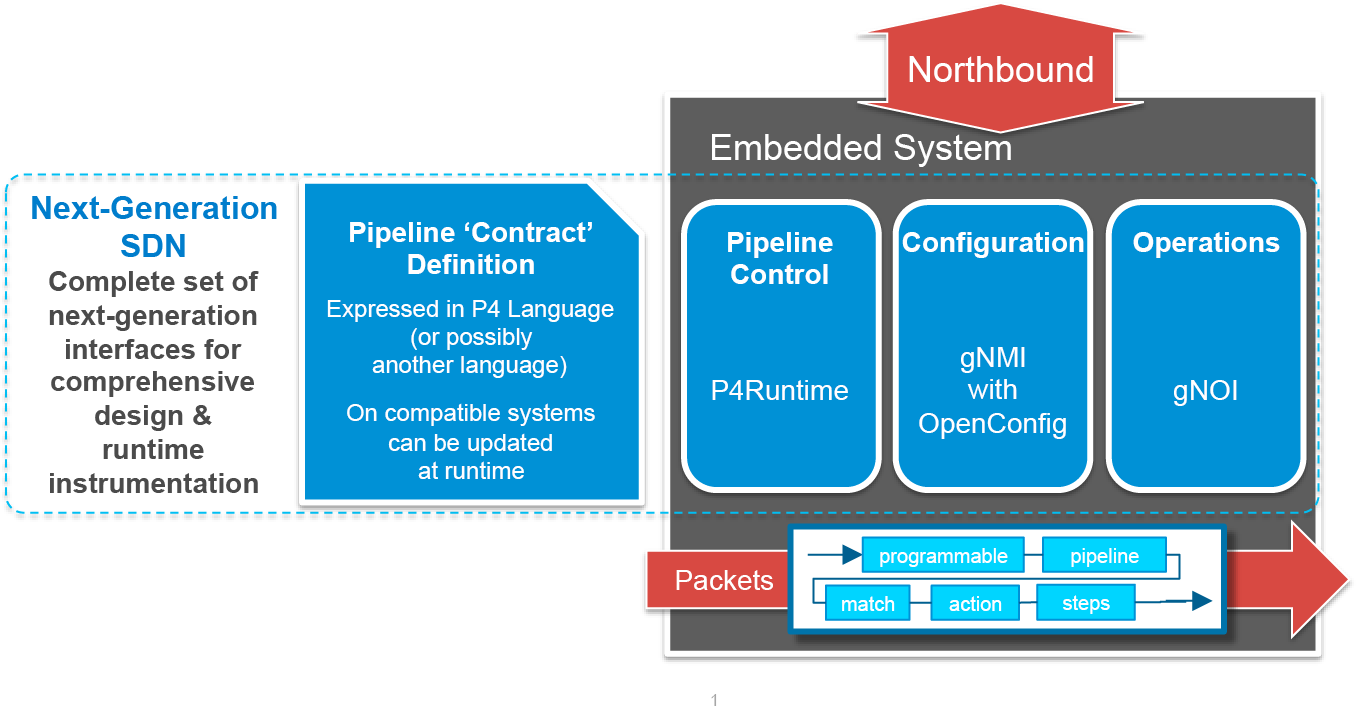

Stratum Project

The Stratum project broadens the scope of SDN to include full lifecycle control, configuration and operations interfaces.

Envisioned as a key software component of SDN solutions of the future, Stratum implements the latest SDN-centric northbound interfaces, including P4, P4Runtime, gNMI/OpenConfig, and gNOI. It does not embed control protocols, but instead is designed to support either an external Network OS or to work with NOS functions running on the same embedded switch.

Stratum: Open Source Thin Switch Implementation

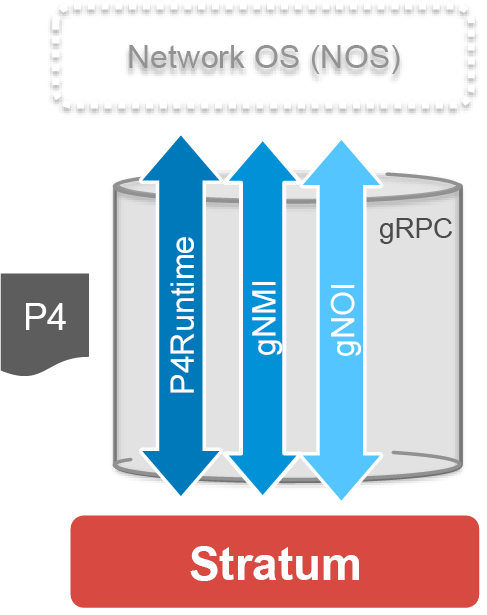

Stratum Controller
  • Open source streamlined implementation for a thin switch implementing next generation SDN interfaces
  • Defines a “contract” defining precisely the forwarding behavior supported by the data plane, expressing this in the P4 language
  • Network OS can be external (for SDN scenarios) or embedded in the same switch when used in traditional switch/router implementations

Supports full lifecycle control and management, including:

  • Configuration
  • Control
  • Operations
  • Optional pipeline programmability

Stratum will be designed to support a variety of use cases including:

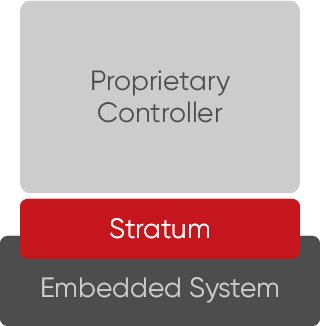

Cloud SDN Data Plane

CLOUD SDN DATA PLANE

Leverage Stratum in Custom SDN Networks.  Google is committed to production deployment of Stratum leveraging this use case.

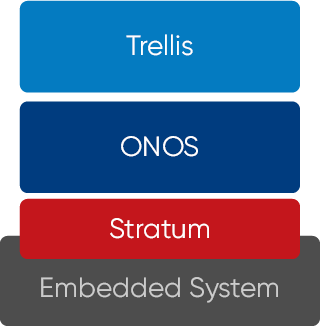

Cloud SDN Fabric Platform

CLOUD SDN FABRIC PLATFORM

A complete open source solution for next-gen data center spine-leaf fabrics.

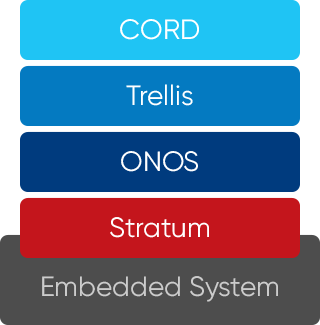

Cord for operator edge clouds

OPERATOR EDGE CLOUD PLATFORM FOR 5G MOBILE & MORE

Increase scalability and cost efficiency of edge clouds with VNFs in the P4 fabric.

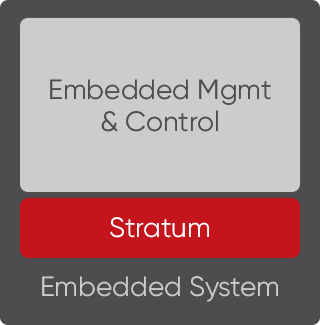

Thick switches with embedded control

THICK SWITCHES WITH EMBEDDED CONTROL

Replicate “traditional” management & control using Stratum on an embedded controller within the same switch.

Cloud Providers

Telecom Operators

Networking Vendors

White Box ODM Vendors

Silicon Vendors

Other Open Source Projects

The Stratum project is in its
incubation phase and the source code repository is open only to members.

To join the project, a minimum commitment of one full time engineering (FTE) resource is required. For more information or to let us know how you would like to contribute, please fill out the contact form.
